NDK緊湊型無源晶體NX5032GA-16.000M-STD-CSK-4專享于理想OA和汽車應用,Crystal unit is a passive component using piezoelectrical effect of the crystal.By applying the voltage, transformation occurs in the crystal and it oscillates frequency of high-stability with the natural resonant frequency of vibration.
NDK devices made by top-quality synthetic quartz crystals are adopted by many automotive field which needs high stabilities.
晶體單元是利用晶體的壓電效應的無源晶振元件。通過施加電壓，在晶體中發生轉變，并且它以振動的自然共振頻率振蕩高穩定性的頻率。許多需要高穩定性的汽車領域都采用了由優質人造石英晶體制成的NDK器件。

Manufacturer Part Number 原廠編碼	Manufacturer廠家	Series 型號	Type 系列	Frequency	Frequency Stability頻率穩定度
NX3225SA-24.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	24MHz	±15ppm
NX3225SA-24.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	24MHz	±15ppm
NX5032GA-27M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	27MHz	±30ppm
NX5032GA-27M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	27MHz	±30ppm
NX5032GA-27M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	27MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12.288MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12.288MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12.288MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	14.31818MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	14.31818MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	14.31818MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	25MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	25MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	25MHz	±30ppm
NX5032GC-16MHZ-STD-CSK-6	NDK無源晶振	NX5032GC	MHz Crystal	16MHz	±15ppm
NX5032GC-16MHZ-STD-CSK-6	NDK無源晶振	NX5032GC	MHz Crystal	16MHz	±15ppm
NX5032GC-16MHZ-STD-CSK-6	NDK無源晶振	NX5032GC	MHz Crystal	16MHz	±15ppm
NX5032GA-12MHZ-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-4	NDK無源晶振	NX5032GA	MHz Crystal	12MHz	±30ppm
NX3225SA-16.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	16MHz	±15ppm
NX3225SA-16.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	16MHz	±15ppm
NX3225SA-16.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	16MHz	±15ppm
NX3225SA-32.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	32MHz	±15ppm
NX3225SA-32.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	32MHz	±15ppm
NX3225SA-32.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	32MHz	±15ppm
NX3225SA-26.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	26MHz	±15ppm
NX3225SA-26.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	26MHz	±15ppm
NX3225SA-26.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	26MHz	±15ppm
NX3225SA-20.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	20MHz	±15ppm
NX3225SA-20.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	20MHz	±15ppm
NX3225SA-20.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	20MHz	±15ppm
NX3225SA-14.31818MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	14.31818MHz	±15ppm
NX3225SA-14.31818MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	14.31818MHz	±15ppm
NX3225SA-14.31818MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	14.31818MHz	±15ppm
NX3225SA-24.576MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	24.576MHz	±15ppm
NX3225SA-24.576MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	24.576MHz	±15ppm
NX3225SA-24.576MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	24.576MHz	±15ppm
NX3225SA-27.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	27MHz	±15ppm
NX3225SA-27.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	27MHz	±15ppm
NX3225SA-27.000MHZ-STD-CSR-1	NDK無源晶振	NX3225SA	MHz Crystal	27MHz	±15ppm

NDK緊湊型無源晶體NX5032GA-16.000M-STD-CSK-4專享于理想OA和汽車應用,NDK提供各種尖端產品，并支持定制設計以滿足個人需求，提供針對客戶應用優化的晶體振蕩器。此外，還有大量符合汽車電子委員會(AEC)標準的汽車晶體振蕩器。NDK將繼續引領行業并支持電子產品的發展，成為高可靠性、高質量和高精度產品的頂級石英晶體器件制造商。

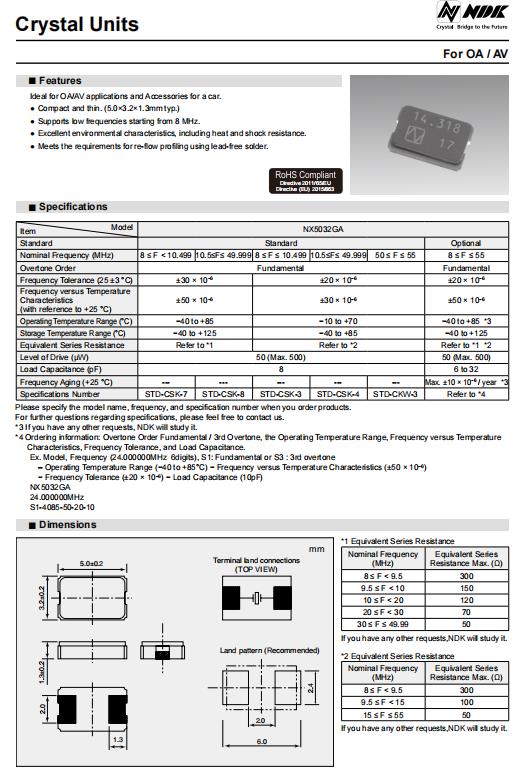

NDK公司發布編碼NX5032GA-25.000M-STD-CSK-4，型號NX5032GA，無源晶振，SMD晶振，石英晶體諧振器，尺寸為5032mm，頻率為25MHZ，理想的OA/AV應用和汽車配件。緊湊、輕薄。(5.0×3.2×1.3毫米typ)。支持從8mhz開始的低頻。優異的環境特性，包括耐熱性和抗震性。滿足使用無鉛焊料的回流剖面要求。
